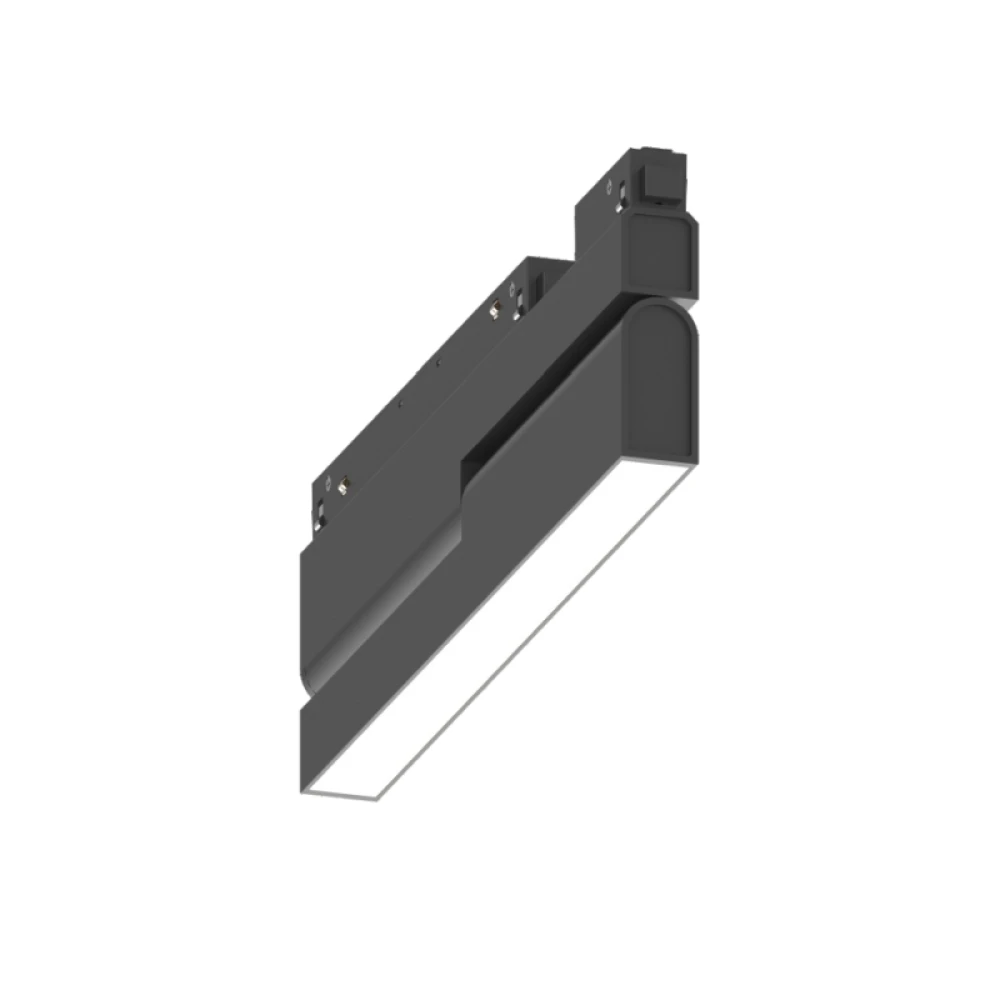

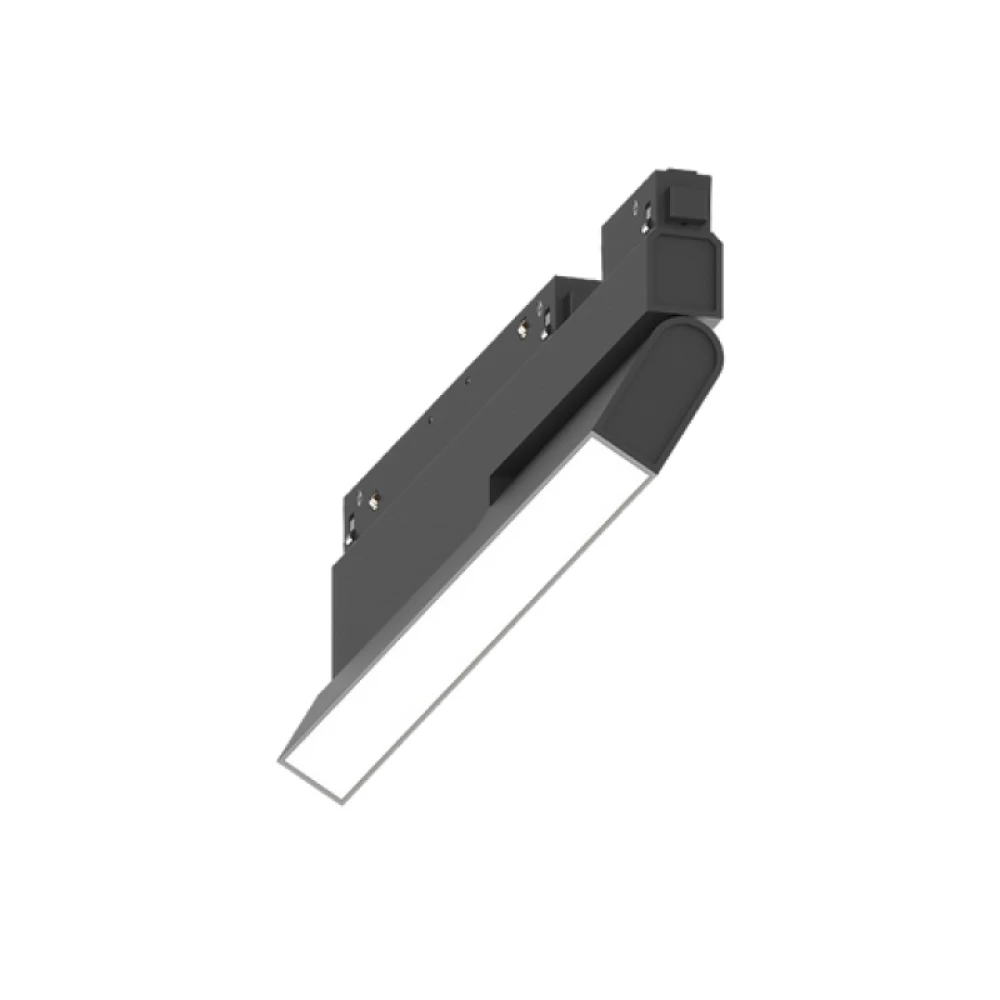

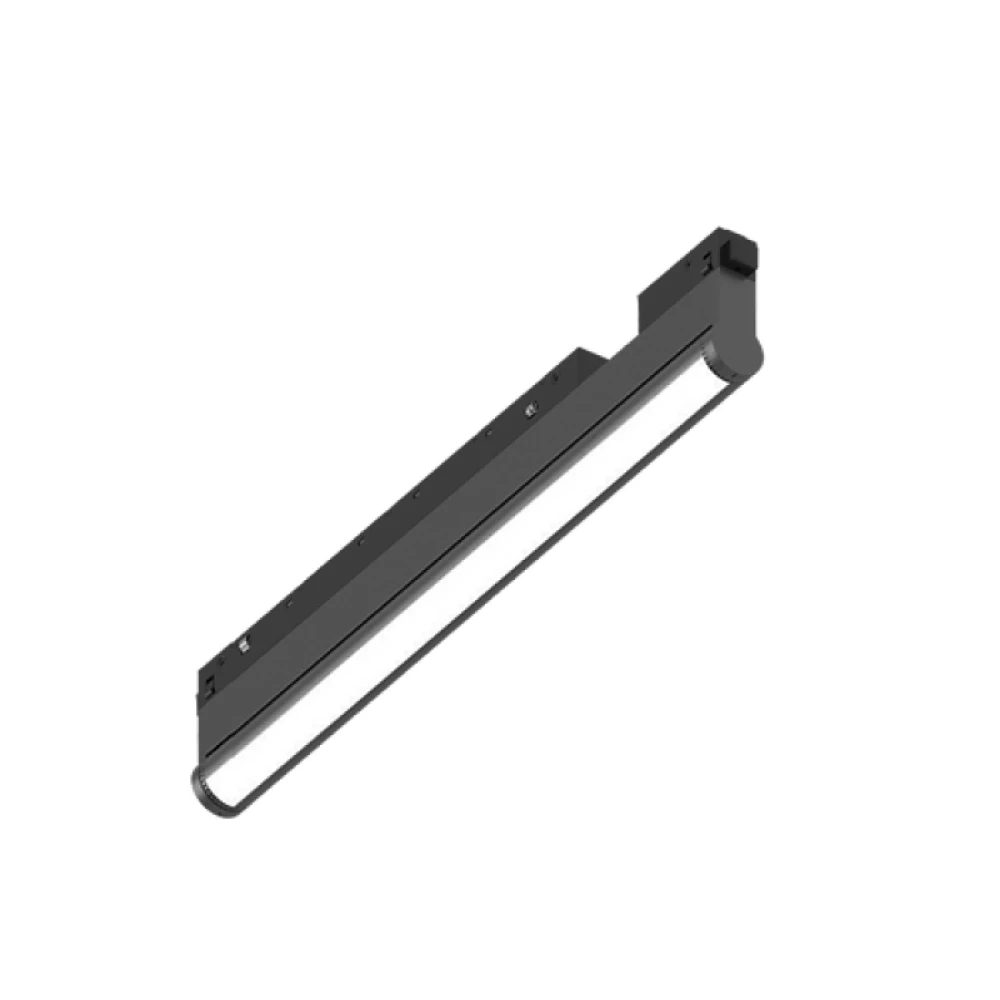

LXWIF

48V low voltage track compatible, general lighting tiltable insert luminaires for indoor use.
This series has three distinctive options of luminaire insert having 7W, 10W and 13W power rating respectively with the choice of color temperatures, lumen packages, color finishes and control protocols.
Designed to offer precise aiming adjustability, functionality, flexibility, durability, ease of placement, aesthetics and elegance with future proof assurance.
Sleek and compact linear profiled optically precise luminaire inserts, having the freedom of field adjustability of vertical aiming angles (+/- 90° WIF 7W, +/- 75° WIF 10W, +/- 90° WIF 13W) with fixed optical distribution/ beam angle (110° WIF 7W, 120° WIF 10W, 110° WIF 13W).
Opal diffuser provides a smooth and consistent glow.

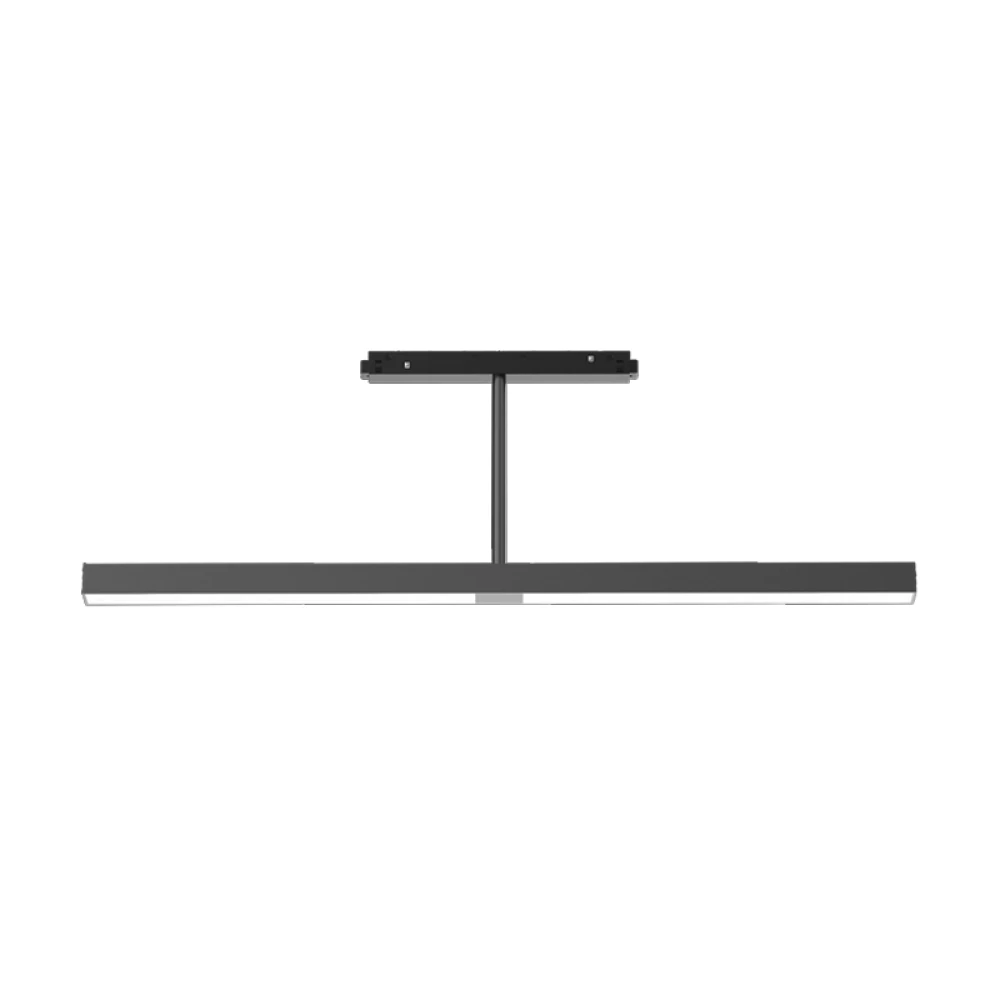

WIF 13W insert is with a pendant arm and optical profile of it could be rotated 355° around the pendant vertical arm for additional flexibility and aiming.
This insert has dual axis rotatability feature for its optical profile.
Can be cohesively employed along with other categories of lighting inserts on the same track for challenging lighting effects.
Excellent color rendering (CRI90) and consistency (SDCM<3).
High pressure die-cast Aluminum housing with durable paint finish.
Compatible to surface, recessed and suspended Line X System’s sleek Aluminum extruded tracks.
Suitable for direct and indirect lighting applications.
Ease of attachment to track through magnetic clamping and mechanical latching.
Freedom to position, relocate or change the luminaire insert per evolving requirements.
L80B10 – 50,000 hours.
