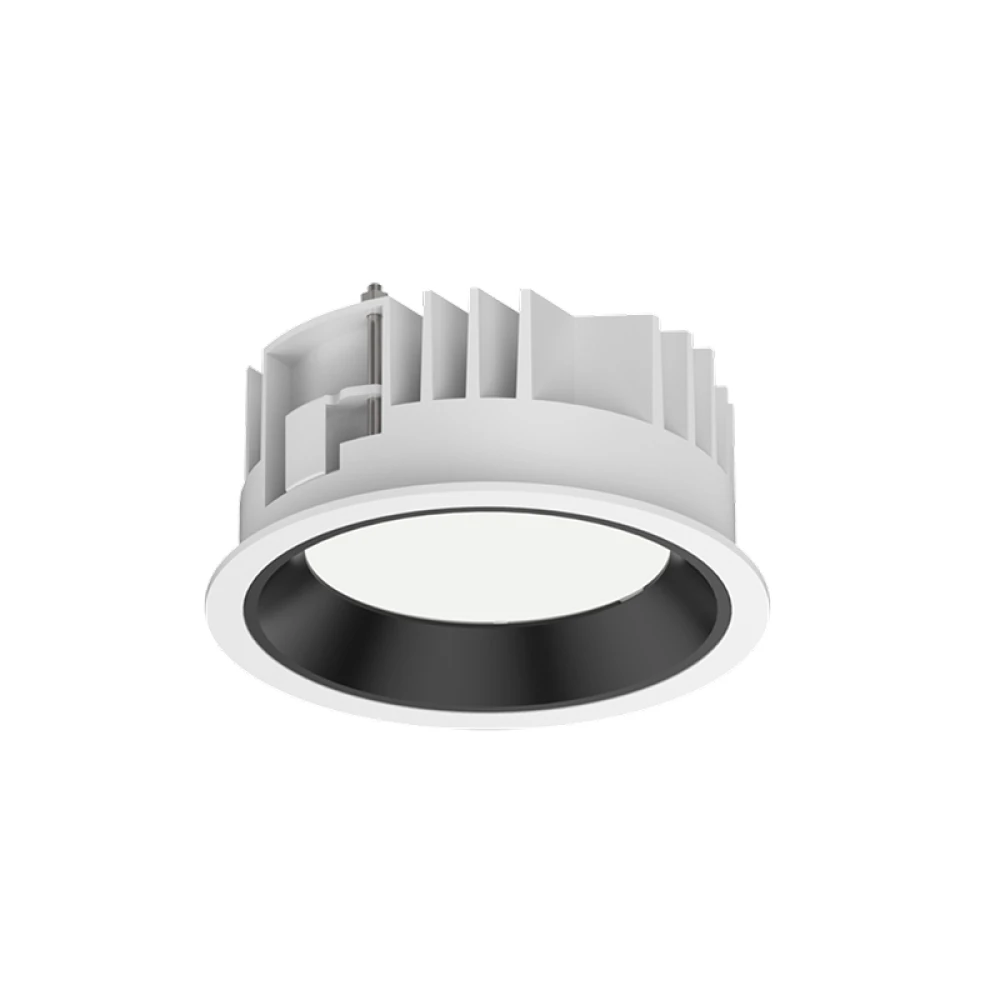

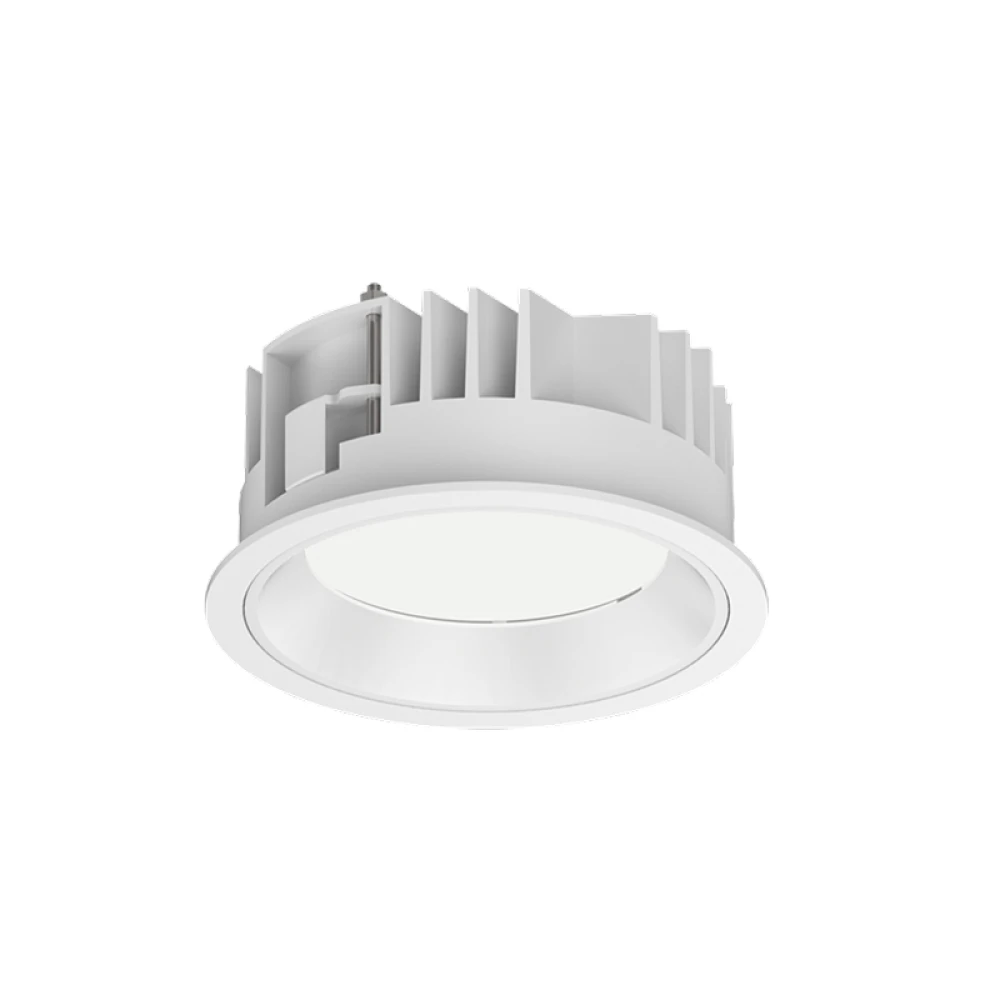

Dove DL100 & DL150

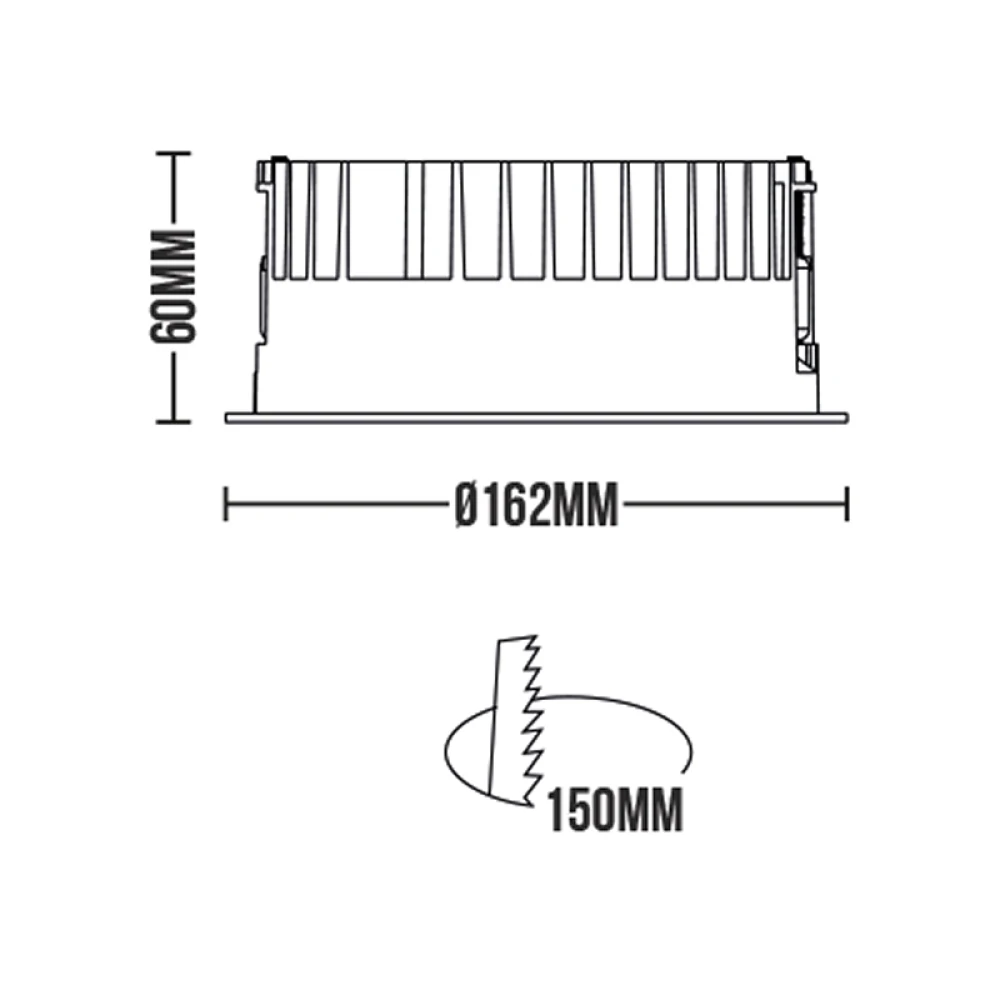

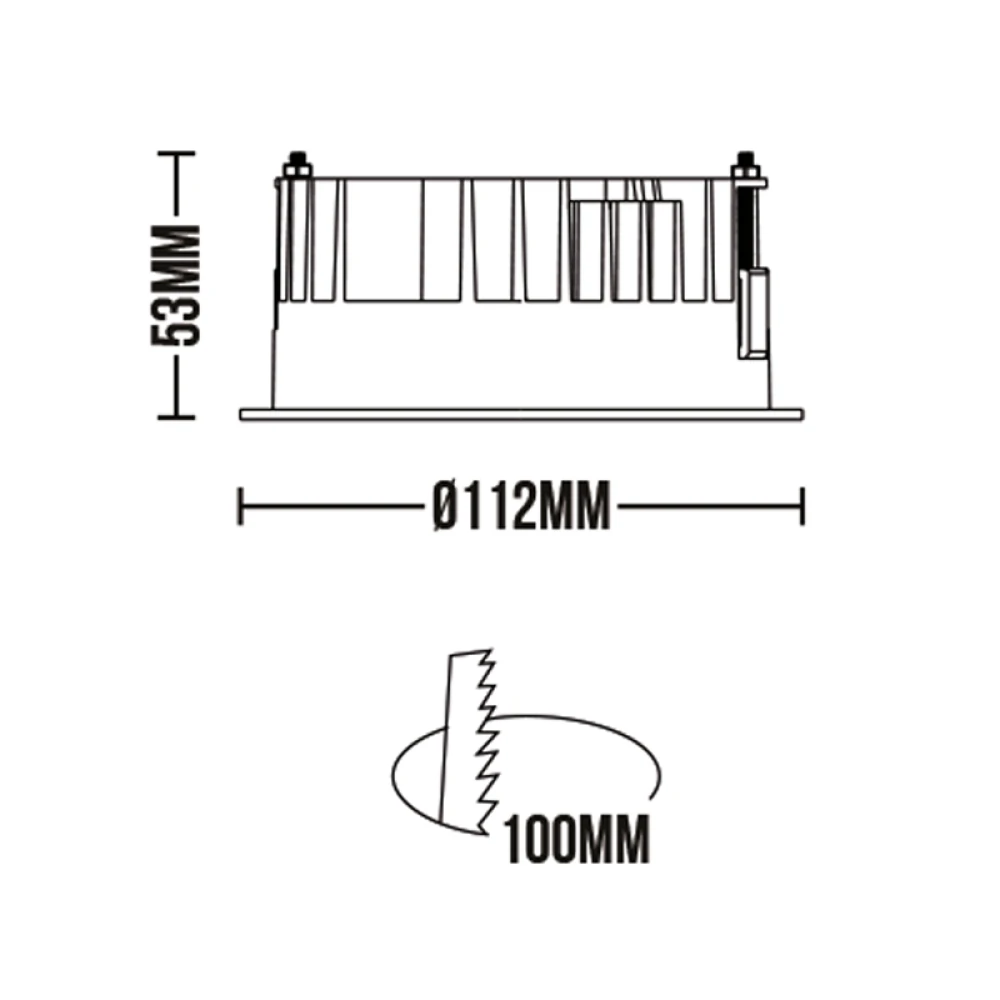

Offered in two physical versions having cutout diameter size of 100mm and 150mm respectively.
Overall downlighter height of 53mm or 60 mm, suits for locations requiring low depth platform.
Die-cast Aluminum alloy single piece integrated bezel (outer ring), housing and heat dissipation fins for robustness, long life and better thermal performance.
Electrostatic powder coated RAL 9010 finish for aesthetics and durability.
IP54 ingress protection rating of SMD light engine assembly through the use of Silicone gasket, frosted polymer diffuser and fasteners.
SMD LED light engine with 90° beam lens, SDCM<3 and CRI 83.
Standard downlight range available in CCT options of 3000K and 4000K.
Standard offered luminaire having interchangeable secondary matt finish reflector.
UGR<19 rated optical system.
System power rating of 14W and 21W with module output of 1300/1400 lumens and 2200/2400 lumens for CCT 3000K/4000K respectively.
Non-integrated remotely mounted constant current non-dimmable (on/off) driver provided as standard offering.
Lumen maintenance up to 50,000 hours (L80B20@35°C).
